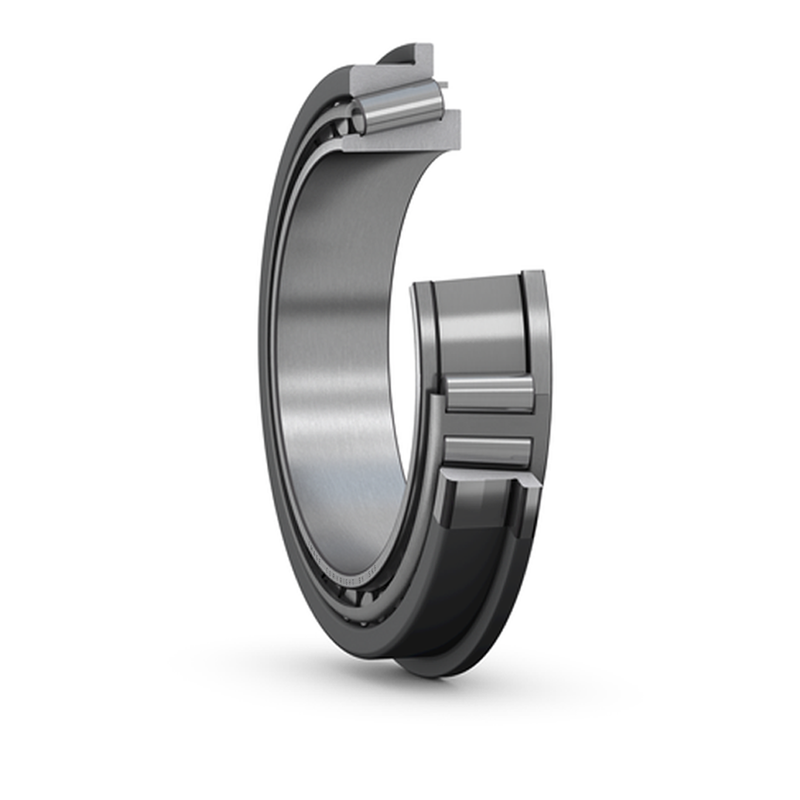

32311BR Single row tapered roller bearing with flanged outer ring

Position:Model > Tapered Roller Bearings
#
  • #
  • #
  • #

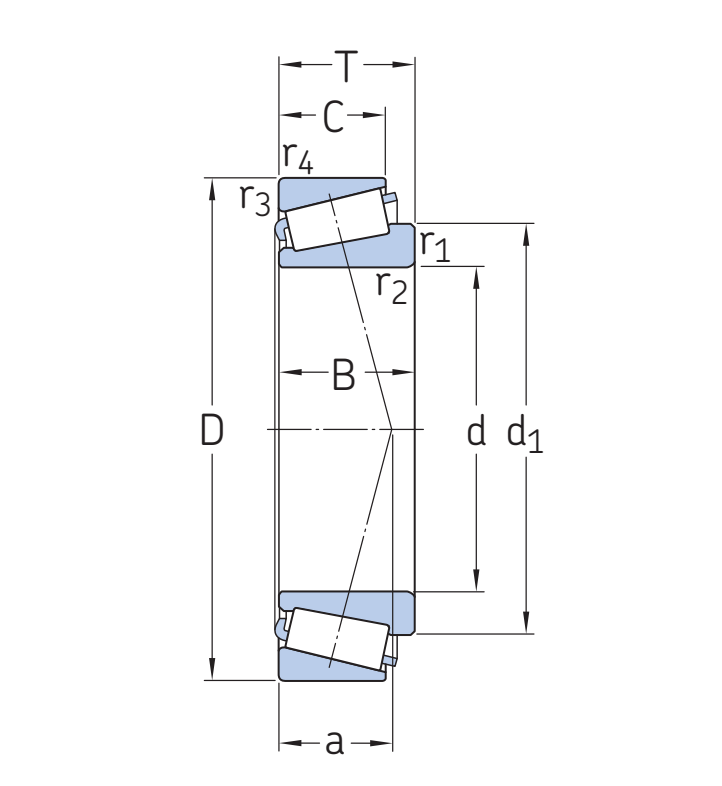

Main Dimensions & Performance Data

Model

32311BR

d

55 mm

od

120 mm

T

45.5 mm

C

233 kN

C0

260 kN

Pu

30 Pu

reference speed

4300 r/min

limit speed

5600 r/min

weight

2.55 kg

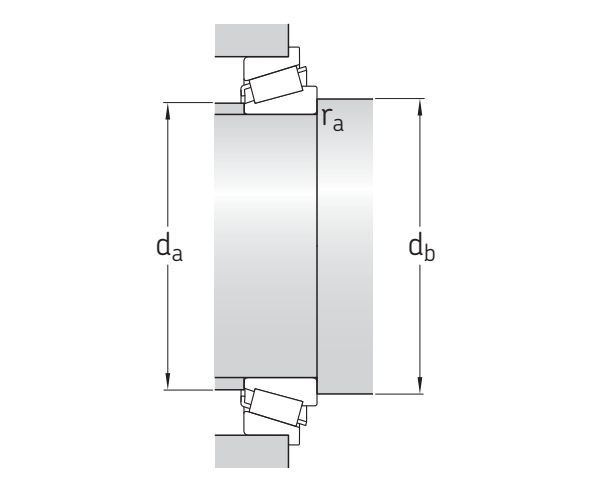

Mounting dimensions

d1

90.5

D

127

B

43

C

35

C1

8

r1,2min

2.5

r3,4min

2

a

36

da max

67

dbmin

67

ramax

2.5

e

0.54

Y

1.1

Y0

0.6
