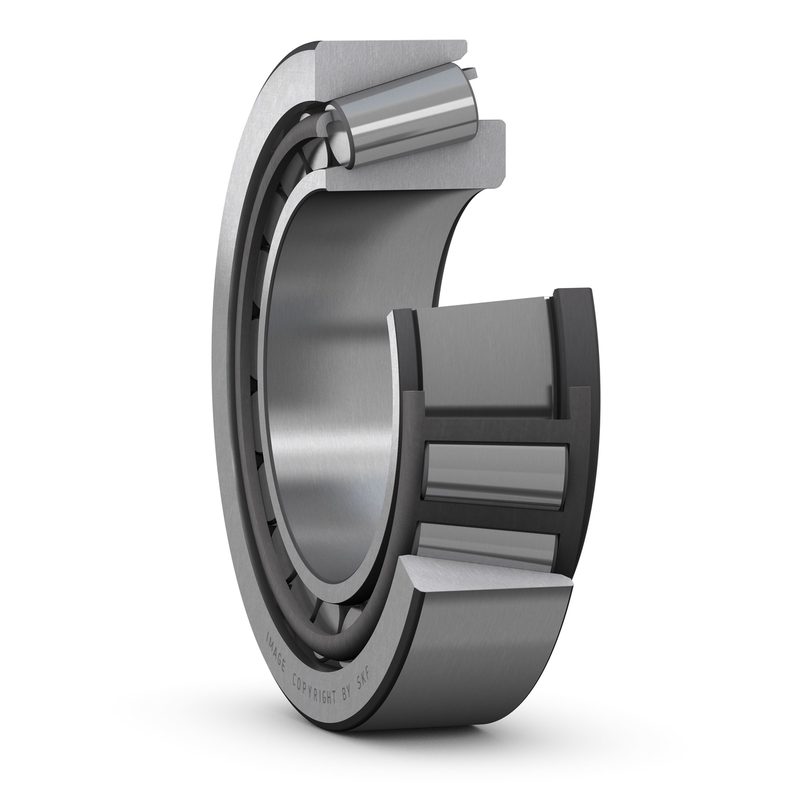

M84548/510 Inch single row tapered roller bearing

Position：Model > Tapered Roller Bearings
#
  • #
  • #
  • #

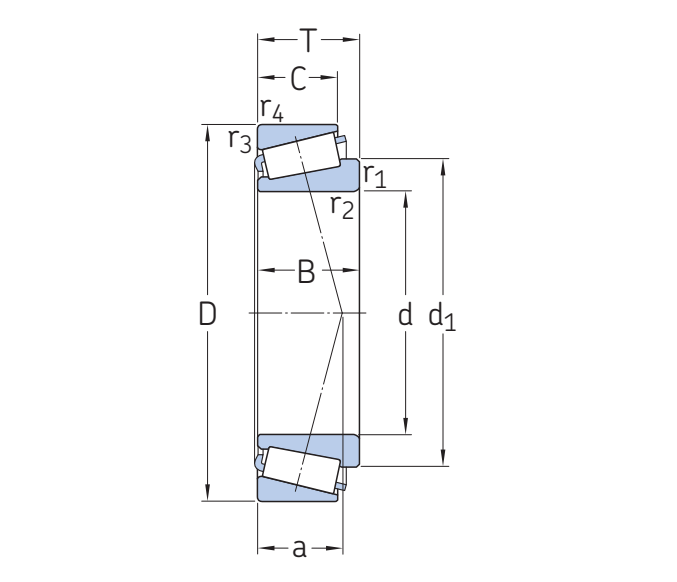

Main Dimensions & Performance Data

Model

 M84548/510

Iso355 standard

 M84500

d

 25.4 mm

od

 57.15 mm

T

 19.431 mm

cr

 48.8 kN

cor

 45 kN

Pu

 5 Pu

reference speed

 10000 r/min

limit speed

 12000 r/min

weight

 0.24 kg

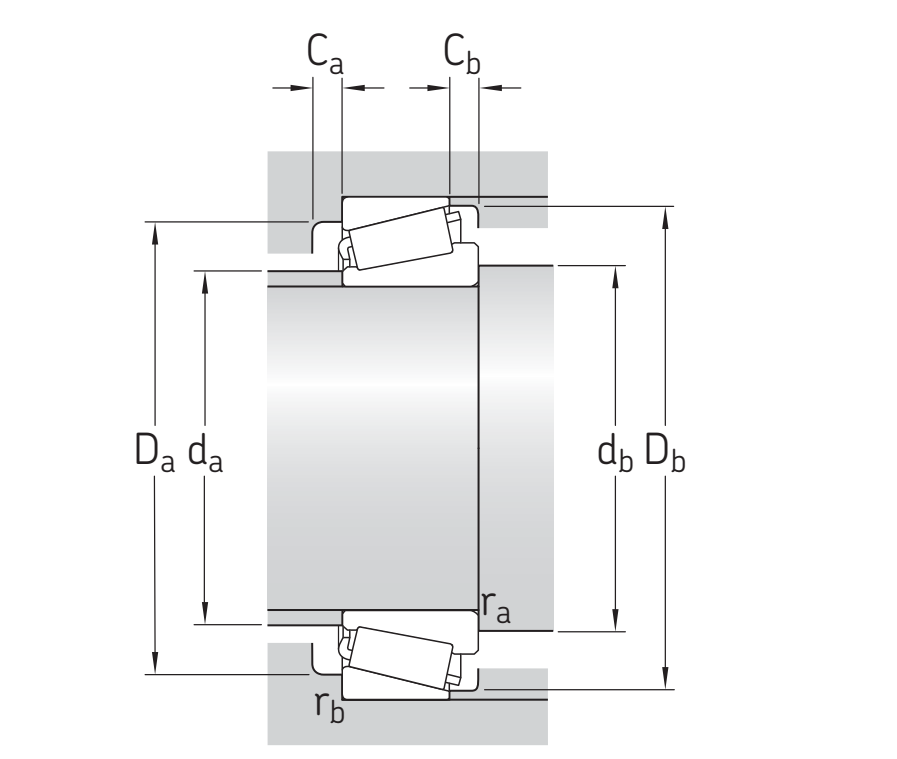

Mounting dimensions

d1

 42.5

B

 19.431

C

 14.732

r1,2min

 1.5

r3,4min

 1.5

a

 15

damax

 33

dbmin

 33.5

Damin

 45

Damax

 50

Dbmin

 53

Camin

 3

Cbmin

 4.5

ramax

 1.5

rbmax

 1.5

e

 0.54

Y

 1.1

Y0

 0.6
