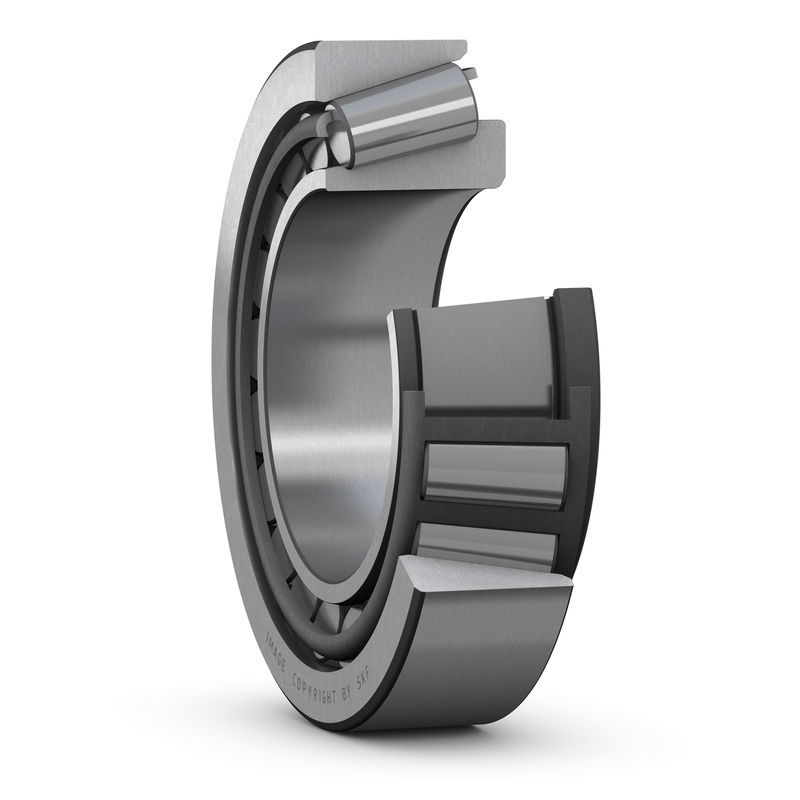

32948T114/DB aired tapered roller bearings in back-to-back configuration

Position：Model > Tapered Roller Bearings

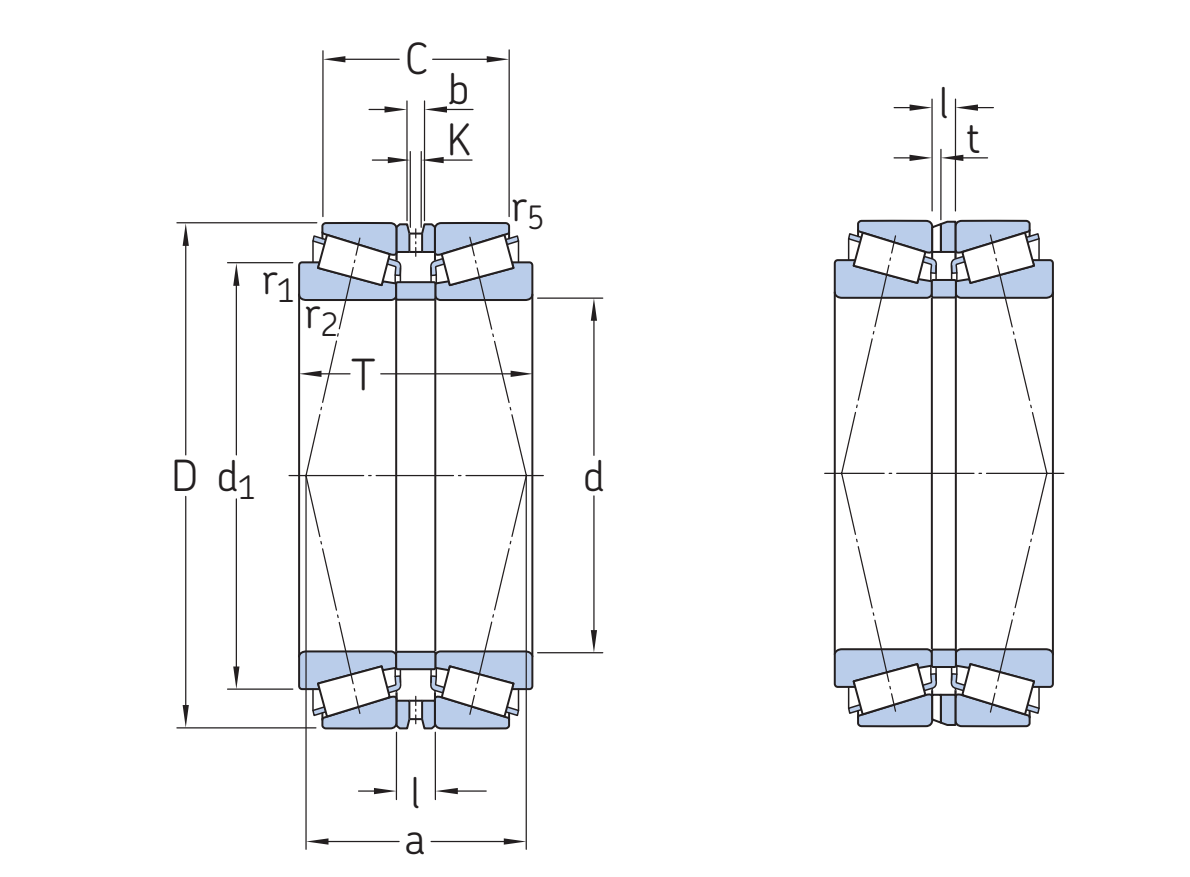

Main Dimensions & Performance Data

Model	32948T114/DB
d	240 mm
od	320 mm
T	114 mm
C	1069 kN
C0	2160 kN
Pu	193 Pu
reference speed	1200 r/min
limit speed	1700 r/min
weight	23.5 kg

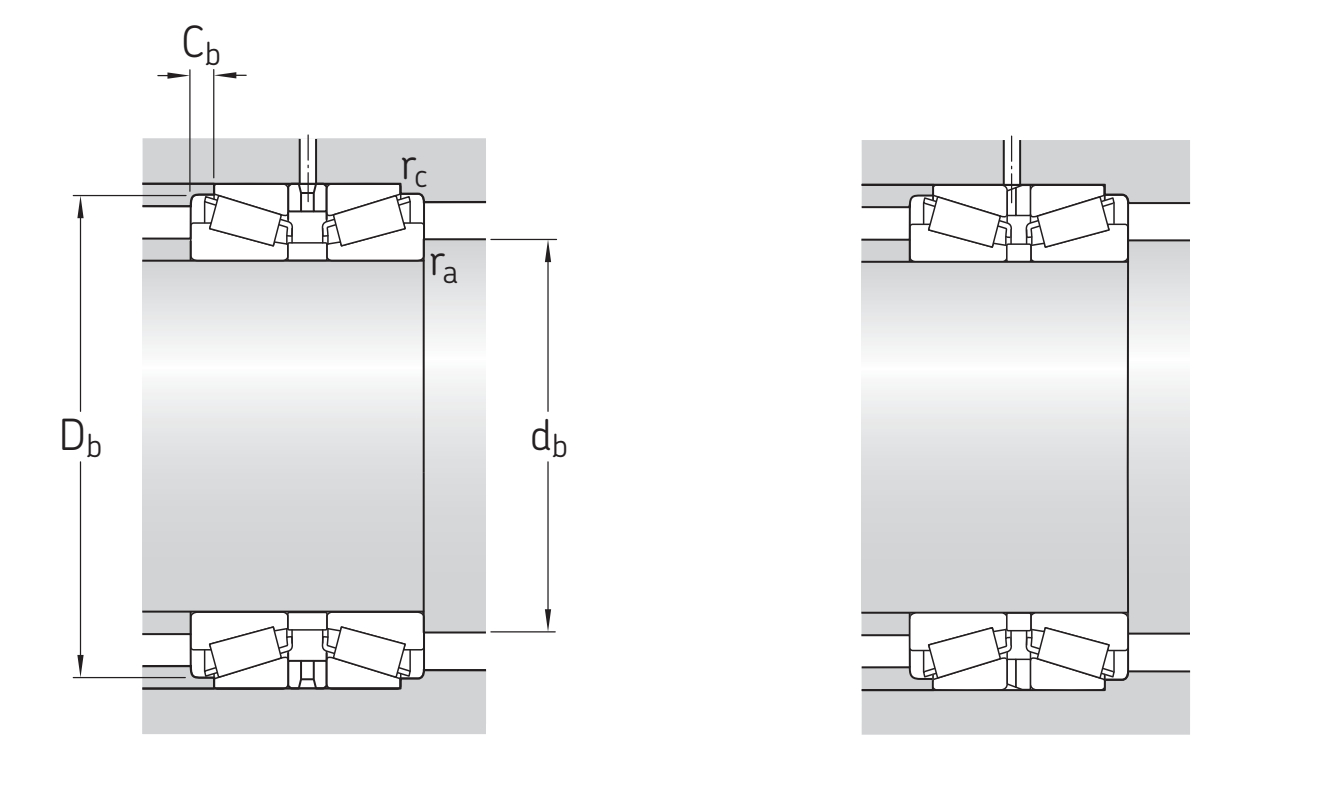

Mounting dimensions

d1	280
C	90
l	12
b	7
K	4.5
t	–
r1,2 min	3
r5min	1
a	140
dbmin	256
Dbmin	311
Cbmin	12
